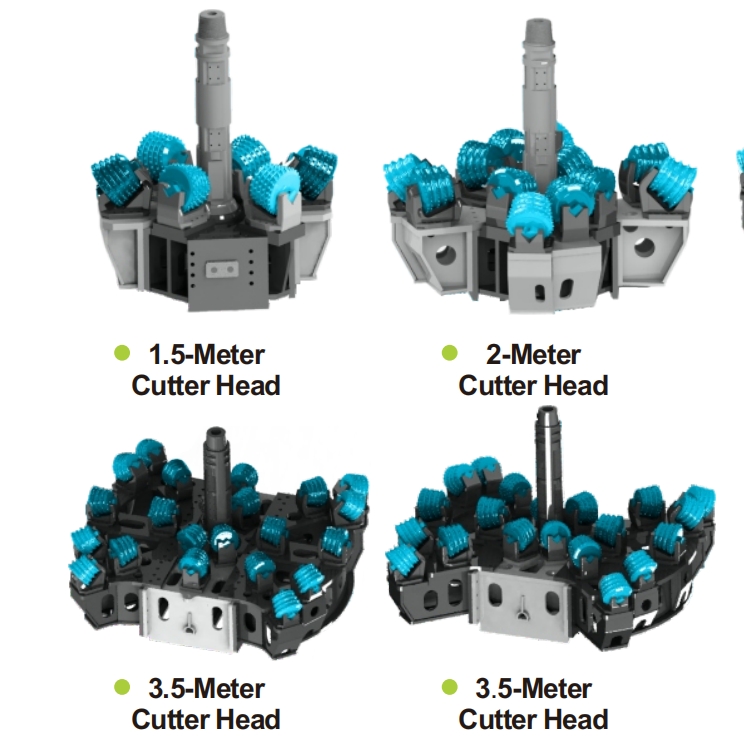

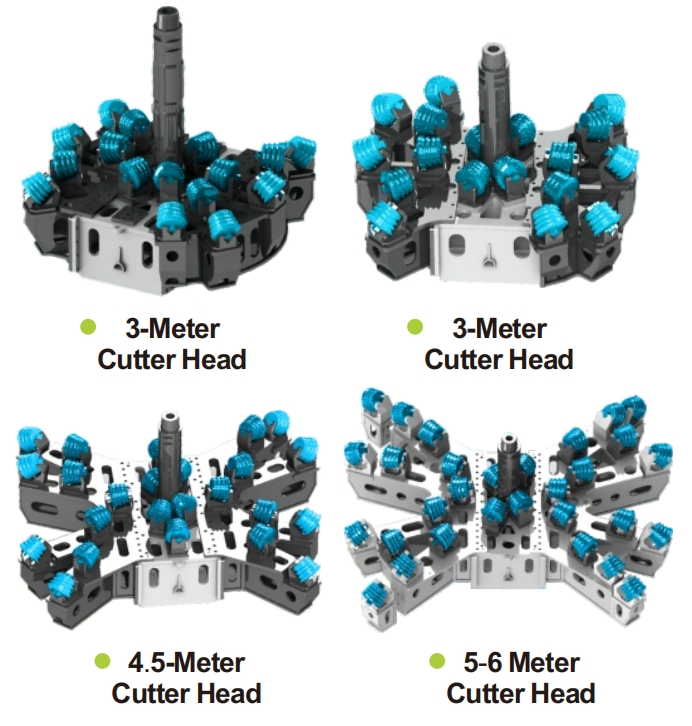

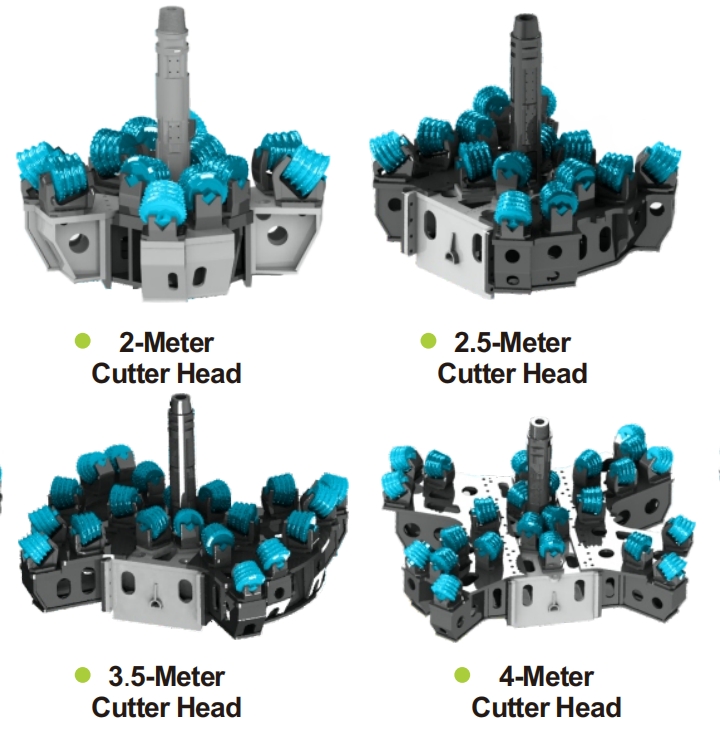

Raise Bore Reamer diameter(mm):1500-6000
Reaming diameter(mm):1500-6000
Base material:High strength alloy steel
Roller cutter material:Cemented Carbide
Roller cutter base material:Forged alloy steel
Guard material:Tungsten carbide coating
As the core component of the raise boring machine, LOOKING Raise Bore Reamer uses high-quality high-strength alloy as raw material, has strong wear resistance, and can adapt well to various rock types. In addition, we also provide you with a one-stop solution. Whether you are doing raise boring for mining or other projects, we can provide professional customized services according to the geological conditions of your project.
Using LOOKING raise boring reamer as your rock breaking tool, it can squeeze the rock mass to produce a “rock core effect”, reduce the energy consumption of crushing, and increase your rock drilling speed, thus saving your construction time and cost.
Our raise boring reamer uses ultra-high quality carbide as raw material, and also uses high-quality bearings, which makes it have a longer service life than ordinary raise boring reamers, saving your use costs while ensuring the continuity of your project.
LOOKING raise boring reamer adopts modular design. When your project is in a complex geological environment, you can choose to replace different types of roller cutters to deal with it. Whether it is hard rock, broken zone or grinding layer, our raise boring reamer can adapt well.
Generally, it is caused by imbalance of cutter head, rock cracks and high impact load. It is recommended to stop the machine to correct dynamic balance and reduce the propulsion speed.
Generally, it is caused by changes in rock layer properties, missing rollers and other reasons. It is recommended to dynamically adjust the propulsion force and install rollers in time.
